How to install a floppy drive

Click on the hyperlink for instructions for that step.



Read the Safety Procedures. Very Important!!!



  1. Disconnect all cables in the back of the system (Including power cord)
  2. With power cord removed, push the power button for five seconds (still leaving power cord disconnected)
  3. Touch something metal on the system.
  4. Do not blow on the inside of the system. Your breath has moisture and electronics does not like moisture.
  5. Open the system (This hyperlink will show you a few examples, however there is too many different type of cases to show here)
  6. locate the bay that is designed for the floppy drive. (Consult the manual, myself, or manufacturer for the instructions on the location of where the drive goes. There is too many variations of computer cases for me to give the steps here)
  7. Some bays use clips to connect the drive in the bay, others use screws. (Check your manual myself, or manufacturer for instructions)
  8. Most cases have a 3 1/2 slot to put a floppy. If the case you are installing the drive in doesn't have a 3 1/2 or doesn't have one free, you can install it in the 5 1/4 slot by using a kit for it.

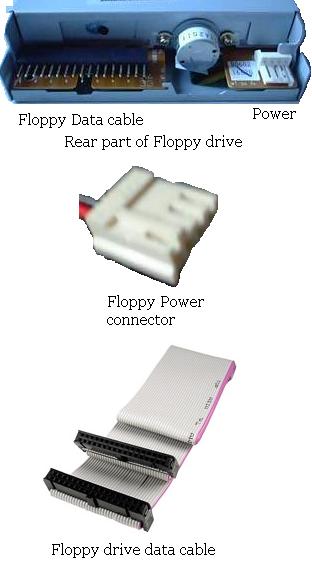

  9. On the motherboard there is only one controller connector for the Floppy Drive. The ribbon looks similar to an IDE cable but it is not as wide.  (consult the manual, myself, or manufacturer for the exact location due to all motherboards are designed different)
  10. Install power connector (It is designed to go in only one way and make sure it is seated good)
  11. Close the computer up, connect keyboard, mouse, monitor and power to the system.
