Is the hard drive SATA or IDE

If you don't know if the drive you have is SATA or IDE, look at the connections. Below is a picture of a hard drive but the layout of the connections are the same for CD-ROM drives



Hard drives look like this



The following is PATA or IDE drive and connections


For information about jumpers, click here

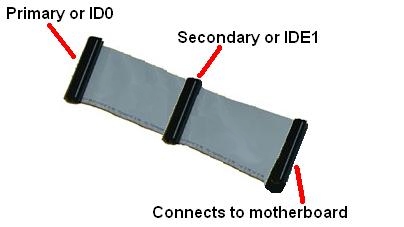

  IDE Cable

The primary hard drive needs to be plugged into the primary part of the IDE cable





            IDE Drive Power

Motherboard connector would look like this


The blue one indicates IDE0 (the first IDE connector) The white one indicates IDE1 (secondary connector. The primary hard drive gets connected to the blue one. CD-ROM, tape drives and in some cases secondary hard drives get plugged into the white one.

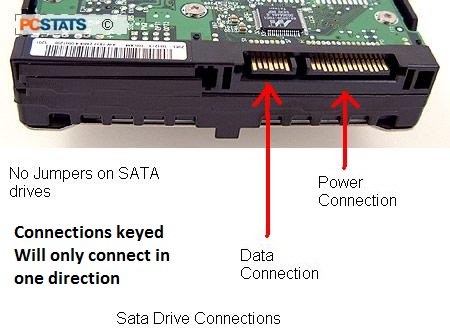

The following is a SATA drive and SATA connections




With IDE drives, you have to turn the computer off and unplug the power cord before connecting. With SATA, you can plug them in while the system is on. I would recommend doing it while it is off though.

IDE drives is old technology and is in the process of being phased out. Most if all systems now use SATA.

This is important for you to know so if you buy a hard drive, CD-ROM drive or a drive enclosure, you will know what kind to get.

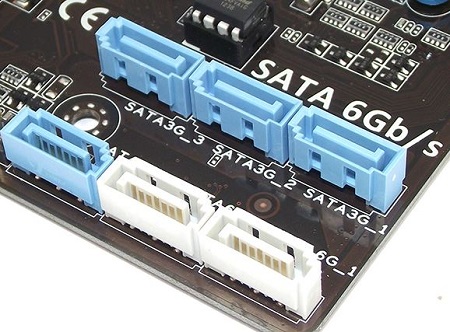

Motherboard port would look like this



When you plug the primary hard drive (the one that is going to be drive C) Plug it into Port number 1. If the drive is 6Gb capable, plug it into the ones labeled as SATA6G.
